Fume extractors for soldering and DTF printing

Fume extractors for soldering and DTF printing are filter fume extractors, also known as smoke absorbers: a fume extractor for soldering electronics, for laser cutting and engraving, for a beauty salon, a laboratory and DTF printing.

Below: which model to choose for your task, a comparison of specifications, and which replacement filters, hoses, pipes and nozzles fit each one.

Sorting:
0.5–1 µmthe typical particle size of rosin flux fume, according to HSE; such particles need high-efficiency filters
≥ 50%by this much, in NIOSH tests, exhaust ventilation may reduce nail technicians’ exposure to chemicals
6 monthswarranty on the F6001, F6001D, F6002, F6002D and XS-080, according to their product cards

Which fume extractor to choose



In short: the most compact desktop model is the XS-060; the one on wheels is the XS-080. Check your task against the models below, and the specifications and replacement filters against the tables.

What these fume extractors are for



Filter fume extractors remove smoke and fumes right at the workstation. They are used for soldering electronics, for DTF printing and in laboratories, and also for laser cutting and engraving and in beauty salons.

Soldering electronics

Rosin flux fume is a common cause of occupational asthma, and production soldering in most cases needs local exhaust ventilation — according to HSE. The cards of all models list electronics soldering, and the manufacturer names soldering directly for the F6001D, F6002D and XS-080.

All models

Laser cutting, engraving and marking

The OSHA Technical Manual requires ventilation for laser cutting to be chosen so that fume and vapor concentrations stay below the appropriate threshold limits. For the XL-350, the card names cutting acrylic and wood, engraving souvenirs and marking plastic; laser marking and engraving are on the cards of the F6001, F6001D, F6002 and F6002D, and “laser work” on the XS-060.

XL-350 · F6001–F6002D · XS-060

Beauty salons: manicure, pedicure, cosmetology

OSHA recommends that nail salons use portable exhaust devices that remove dust and chemical fumes right at the workstation. The cards list manicure, pedicure and laser cosmetology for the compact XS-080, and manicure for the XS-060; beauty salons are also named on the cards of the F6001–F6002D.

XS-080 · XS-060 · F6001–F6002D

Fume extractor for DTF printing and heat transfer

DTF printing is named on the cards of the F6001, F6001D, F6002, F6002D and XS-060. The XS-080 card describes this model as a fume extractor for a DTF printer and for heat transfer.

F6001–F6002D · XS-060 · XS-080

Laboratories

Chemical laboratories are named on the cards of the F6001, F6001D, F6002 and F6002D, and their descriptions name lab work and laboratory research.

F6001–F6002D

Glues, resins, 3D printing and jewelry work

The cards name work with glues and resins and jewelry work for the XS-080, work with glues for the XS-060, and jewelry workshops and the making of advertising products for the XL-350. 3D printing is listed among the XS-080’s tasks by sellers of this model.

XS-080 · XS-060 · XL-350

Filter fume extractors: comparison



Values from the product cards.

ModelPowerAirflowArm · portFilter stagesNoiseDimensions · weight

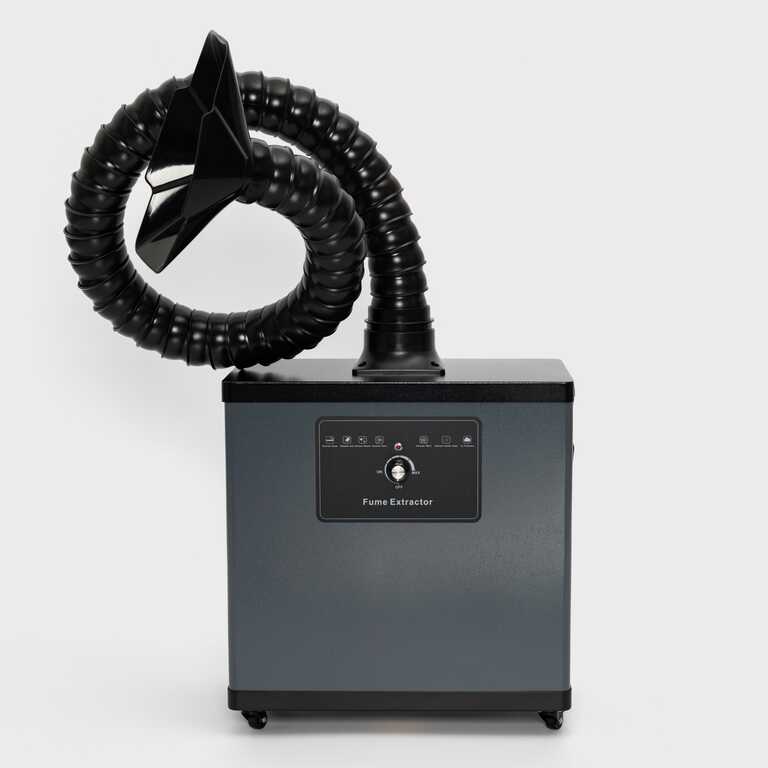

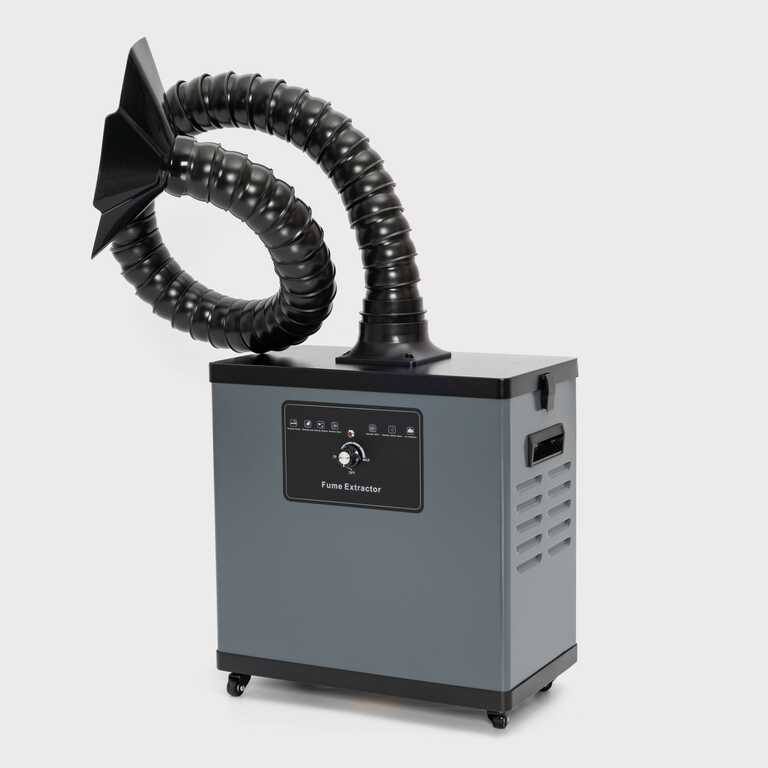

F6001 · F6001D80 W235 m³/h1 flexible arm Φ75 mm × 1.4 m3: pre-filter, middle, mainup to 55 dB425 × 250 × 410 mm · 14 kg

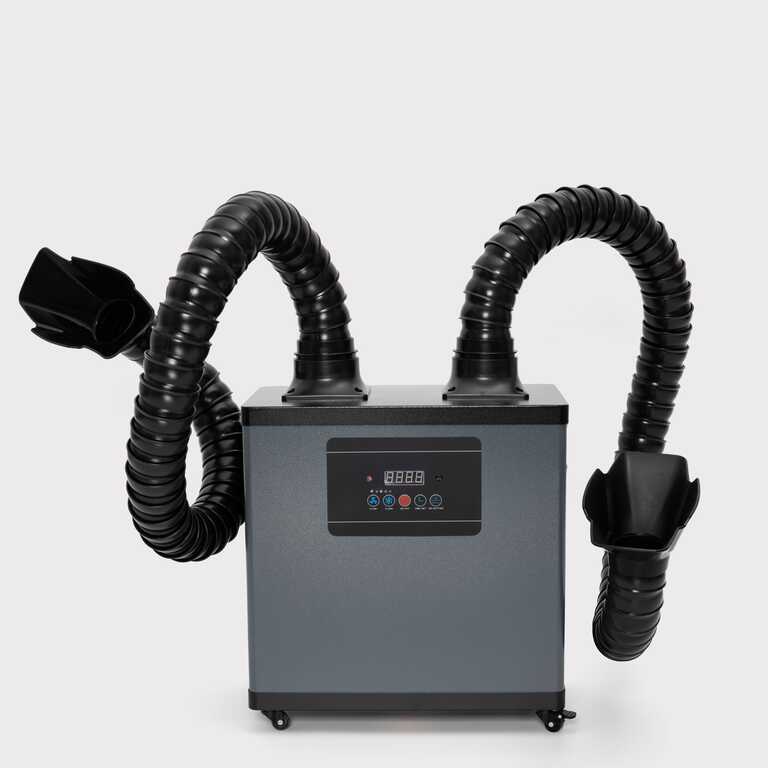

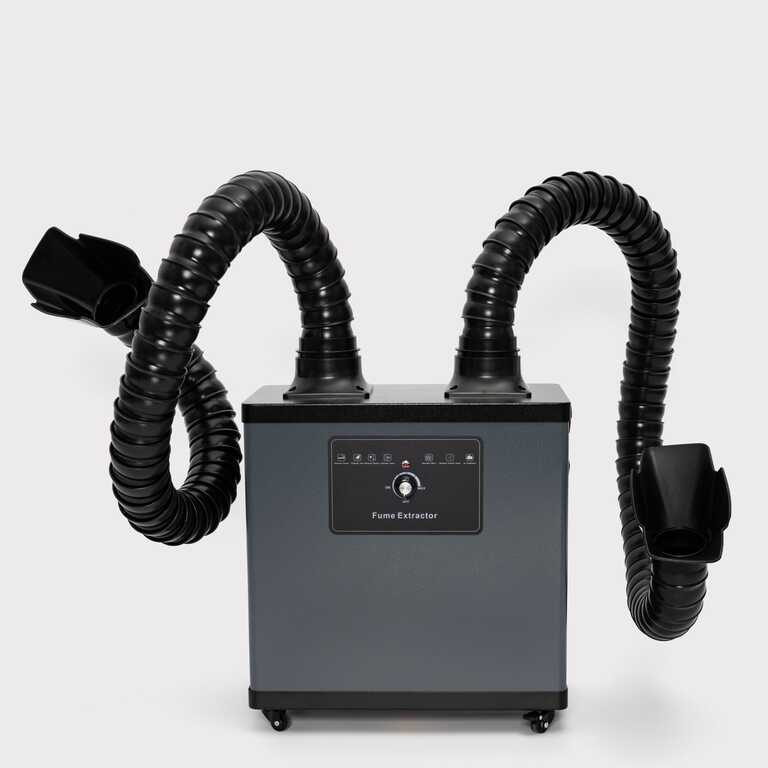

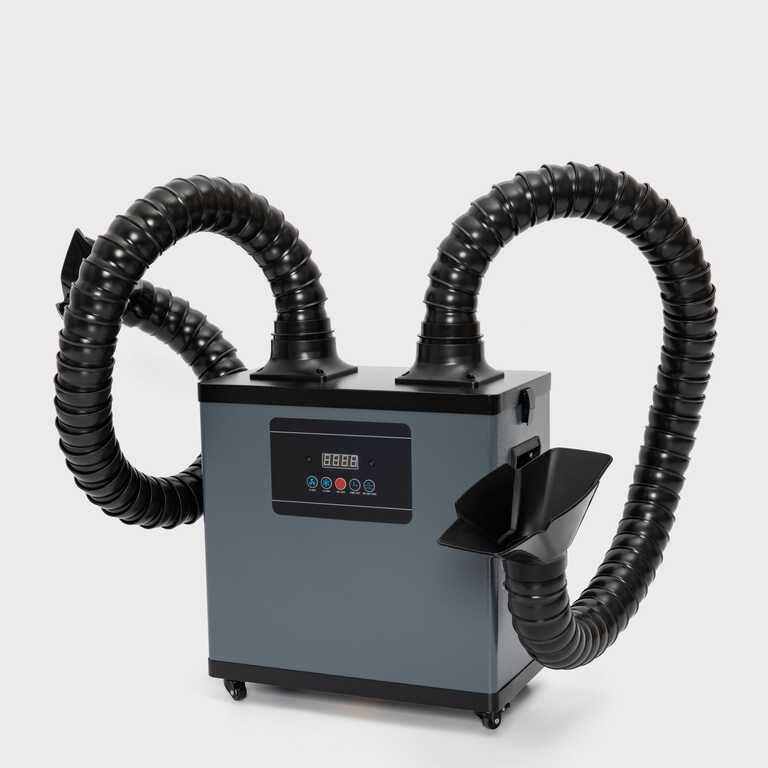

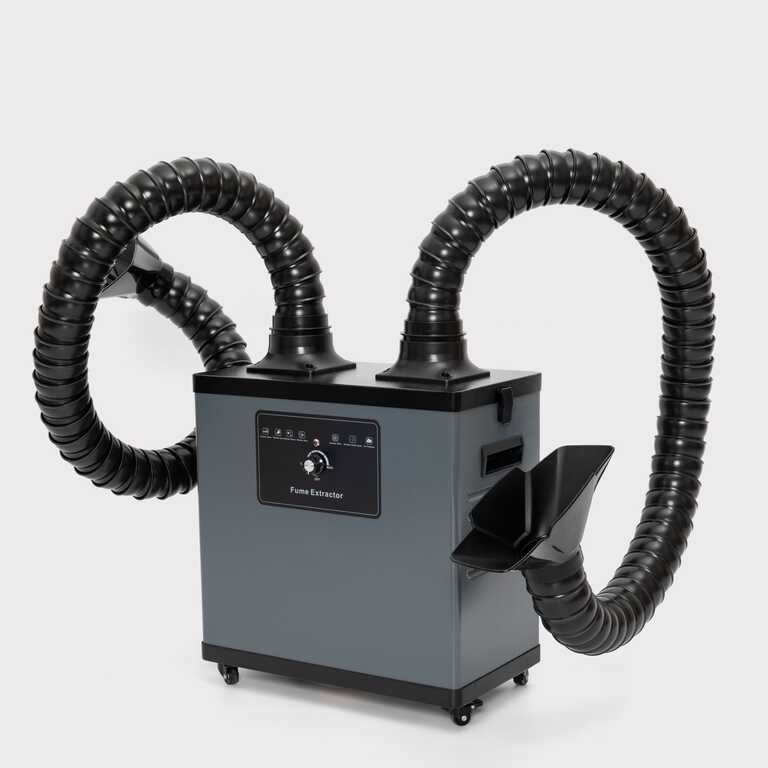

F6002 · F6002D200 W2 × 150 m³/h2 flexible arms Φ75 mm × 1.4 m3: pre-filter, middle, mainup to 55 dB425 × 250 × 410 mm · 14.5 kg
XS-06060 W160 m³/harm Ø50 mm × 0.75 m, swivels 360°2: pre-filter, mainup to 52 dB185 × 185 × 300 mm · 4.6 kg
XS-08080 W180 m³/hpipe 1.2 m, port Φ65 mm3: pre-filter, middle, mainup to 55 dB280 × 280 × 430 mm · 9 kg
XL-350350 W450 m³/hport Φ100 mm7 layersup to 60 dB425 × 315 × 700 mm · 36.7 kg

The D versions — F6001D and F6002D — have a digital display, a remote control and a clogged-filter alert; all other values are as for the F6001 and F6002.

Replacement filters, hoses, pipes and nozzles



Replacement filters — activated carbon, HEPA, oil-absorbing and cotton — are sold separately, as are hoses, pipes and extraction nozzles. The air passes through the stages one by one: as the manufacturer explains for the F6002D, the pre-filter traps large dust particles, the middle filter extends the life of the main one, and the carbon layer absorbs gases.

Filters for each model — as stated in the product names
ModelPre-filterMiddle filterMain filter

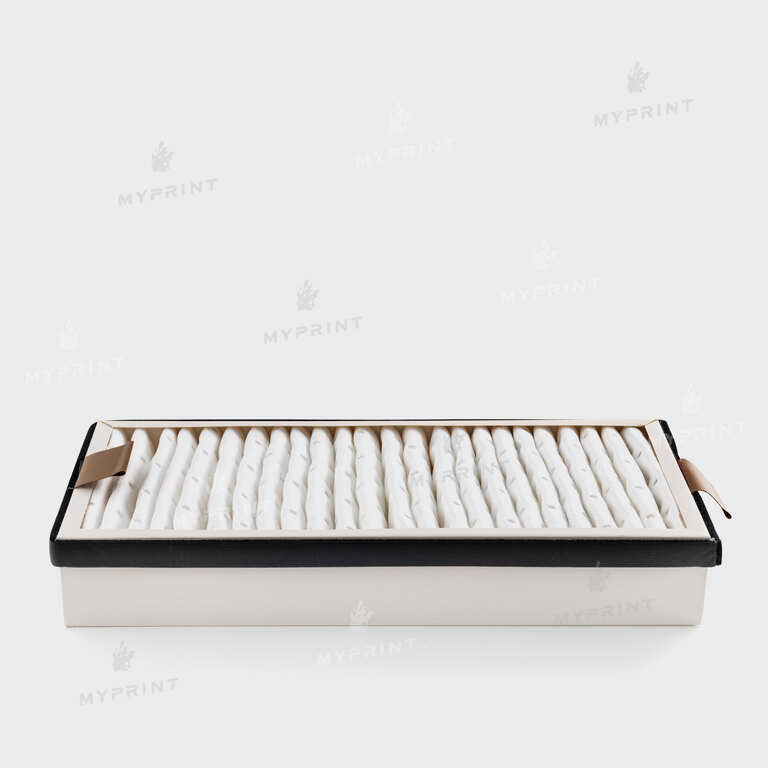

F6001, F6001D, F6002, F6002Dcotton 36.5 × 17.5 × 1 cm; cotton oil-absorbing 36.5 × 17.5 × 0.5 cm; reusable black 36.5 × 17.5 × 1.5 cmHEPA 36.5 × 17.5 × 5.5 cm; for the F6001D also an oil-absorbing one of the same sizecarbon 38.5 × 19.5 × 25 cm
XS-080cotton 51 × 18 × 1 cmHEPA 19 × 19 × 19 cmcarbon 23.5 × 23.5 × 19.5 cm

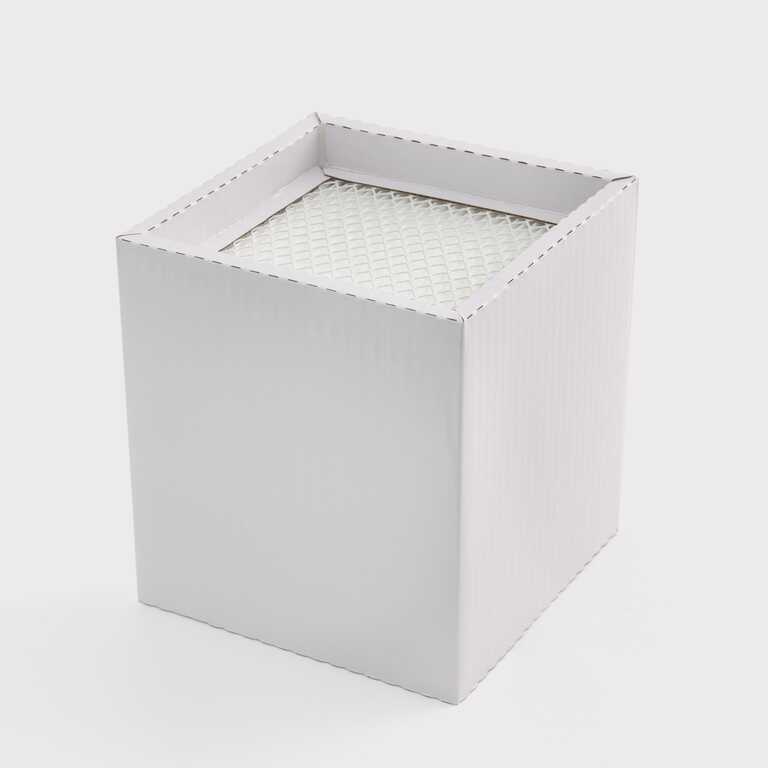

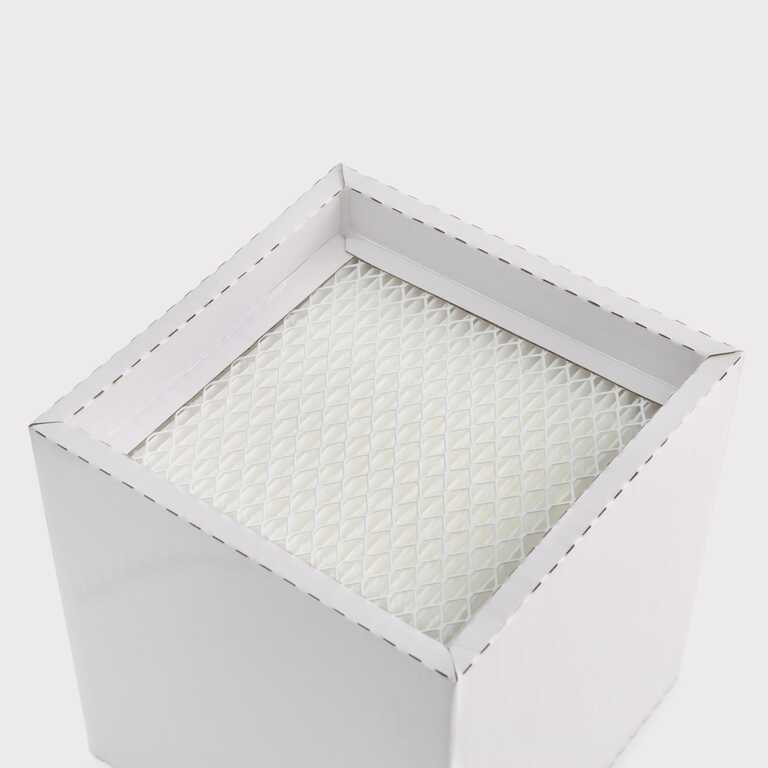

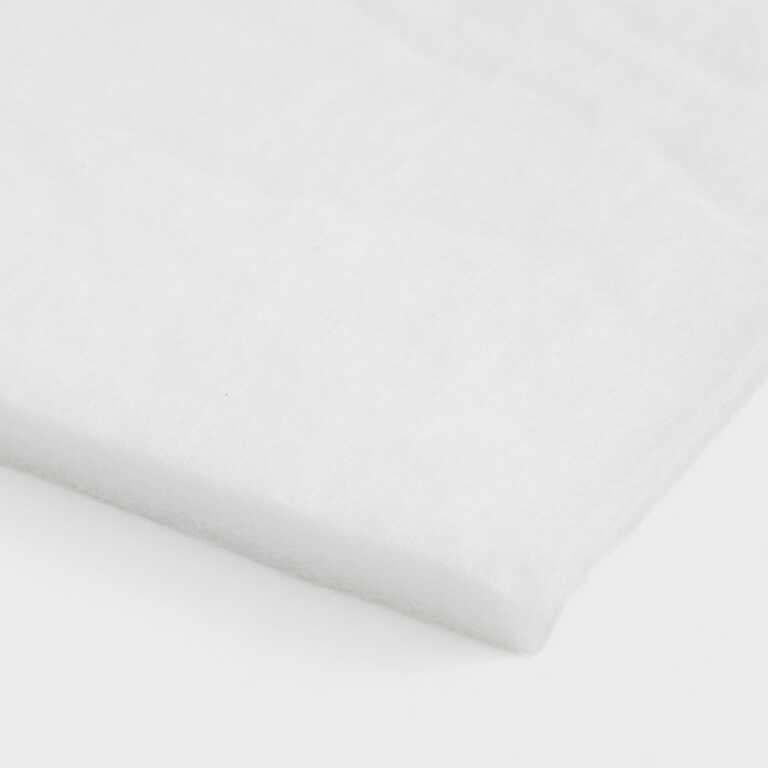

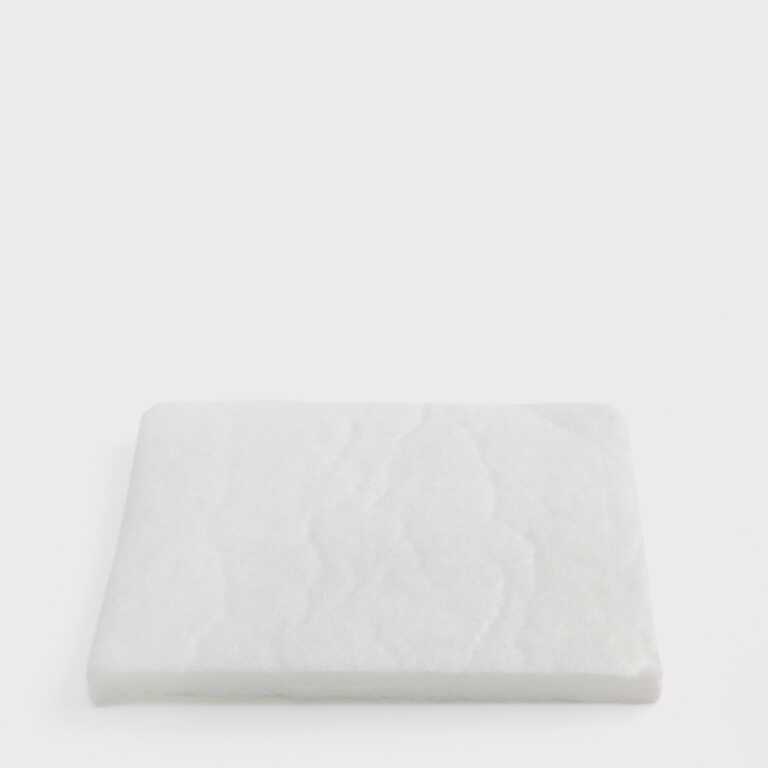

XS-060cotton 14 × 14 × 0.8 cm—19 × 19 × 19 cm

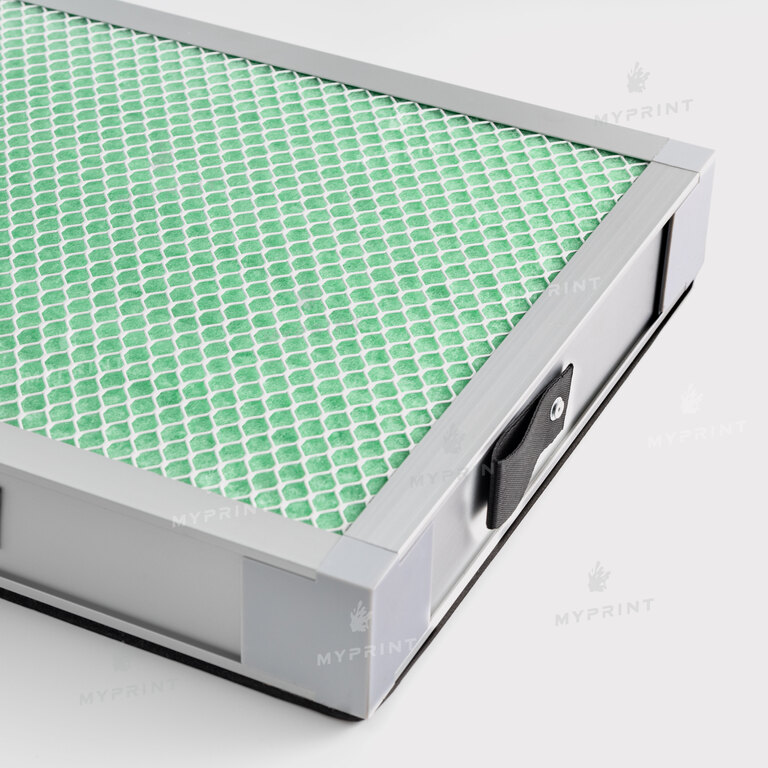

XL-350cotton 38 × 28 × 2 cm; reusable black 36 × 27 × 1.5 cmHEPA 37.5 × 27.5 × 5.5 cm; oil-absorbing 36 × 27 × 10 cmcarbon 37.5 × 27.5 × 5.5 cm
Hoses, pipes and nozzles — as stated in the product names
ItemOptionsFor

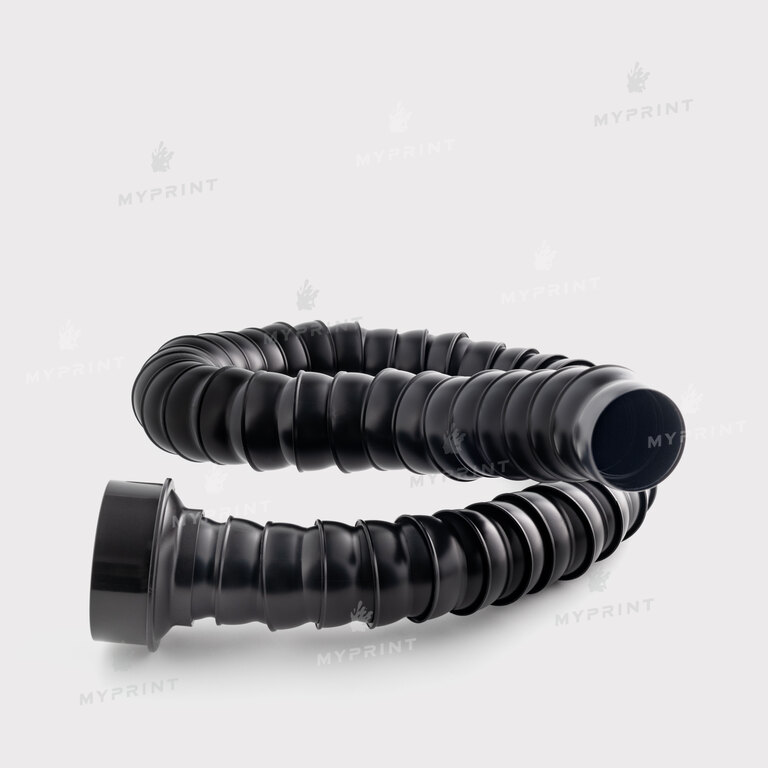

Pipesflexible 50 mm × 1.4 m; bamboo 55 mm × 1.2 m, 65 mm × 1.4 m, 75 mm × 1.4 mfor the F6001D extractor
Hoseflexible 75 mm × 5 mfor the F6001D extractor
Hoseflexible 100 mm × 5 mfor the XL-350 extractor
Nozzlesround 10 cm; rectangular 18 × 9 cmfor a 55 mm pipe
Nozzlesrectangular 18 × 12.5 cm; plastic rectangular transparent 23 × 15 cmfor a 65 mm pipe
Nozzlesacrylic round transparent 31 cm; rectangular 28 × 10 cm; round 13 cmfor a 75 mm pipe

Also in this section — a heat-resistant corrugated pipe 100 mm × 4 m, non-stretchable.

How to choose a fume extractor: 4 steps


Task
Find your task in the “What these fume extractors are for” block — it names the models whose cards list it.
Workstations
Tell us how many workstations will run at the same time — we will suggest a configuration.
Connection
For a laser machine, check the diameter of its outlet against the extractor’s port and choose a hose or pipe of the same diameter.
Filters
See which replacement filters fit the model — the filter table above.

How to set up a fume extractor for soldering



Key
Hood to the soldering point
For hand soldering, HSE describes moving hoods for low and medium exposure levels. The typical distance to the fume source is within 1–2 hood diameters; fume capture is checked at commissioning.

Move it as you work
When the soldering point moves, move the hood too.

Head out of the fume
Position the workpiece so that your head stays out of the fume stream.

Tips from the HSE guidance on rosin flux solder fume (INDG249).

We will match a fume extractor to your task

Tell us what you do — soldering, laser cutting, manicure, DTF printing or work with resins — how many workstations, and, for a laser machine, the diameter of its outlet. We will suggest a model, a hose and replacement filters.

Related equipment



FAQ about "Fume extractors for DTF printing":

It depends on how long you work and with what. For the F6002D, the manufacturer gives guidelines: the pre-filter about once a month, the middle filter once every 3 months, the main filter once every 6 months. HSE advises estimating the filter life in advance and replacing the filters regularly. For another model, tell us how many hours a day the extractor runs — we will advise.

In our catalog, these names refer to filter fume extractors. Choose the model by your task and the specifications in the table.

Choose how the air is exhausted based on the process and the materials. For soldering with rosin flux, HSE describes recirculation after a risk assessment, with filtration of particles and gases, a fresh air supply and adequate general ventilation. Send us the extractor model and the materials — we will work out the connection setup.

Yes, choose a kit in the “Kits for DTF printing” section. It also has the R380 portable dryer kit with a fume extractor for DTF printing.

Our replacement filters are made for the models in this section — their names say so, and their sizes are in the filter table above. For an extractor of another brand, send us the sizes and type of your filter — we will compare them with ours.

HEPA is a high-efficiency particulate air filter: by the definition the EPA cites, such a filter is rated to retain at least 99.97% of particles 0.3 µm in size. The cards of all seven models list these values as their filtration specifications.
